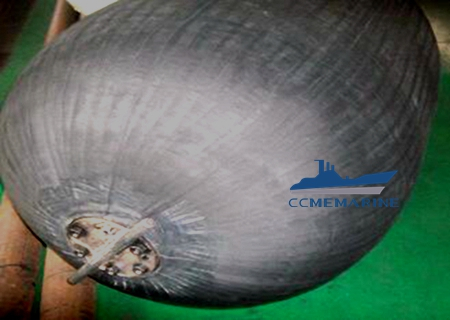

Boat Pneumatic Marine Rubber Fender Dock Fender Sling Type Fender

Floating yokohama fender (for ship use) uses compressed-air as medium to absorb the energy from impact. The sides of ships are softer when berthing, so the result of collision-avoiding is achieved.
All our fenders are frame work instead of hand-making, to have fenders with better quality and longer used time. Compared with traditional bumper-style rubber fender, it has the following features, absorbing greater impact, less reverse impact on the ships, easy installation, more elasticity, not being bent out of shape under pressure, less weigh and practical and economical.
So pneumatic fender has widespread application on oil tankers, container vessels, luxury yachts, ocean platforms, large shipyards, military ports and large underwater foundations of bridges, etc.
Application :
Material:
Cord Fabric:
Availability:
Quantity:
  • CCM8

  • CCME



 Features:
1. *ship to ship, ship to wharf,
*oil tankers, container vessels
*luxury yachts, ocean platforms
*larges shipyards
*Fender system
*military ports, warship
*larger under water foundations of bridges, etc.
2. Classifications
Initial Internal Pressure Rating
There are two initial pressure rating for Evergreen Floating Fenders:
A) Pneumatic 50 (Initial internal pressure 50 kPa)
B) Pneumatic 80 (Initial internal pressure 80 kPa)
3. Fender Type

A) Net-type Fenders
The fender is covered by a protection net consisting of either chain, wire or fiber and usually with tires or rubber sleeves.
B) Sling type
The fender is designed to be used without a protection net. It's easy to hand because of their lightweight.





Performance

Pneumatic FenderTechnical Performance Table

Specifications (mm)

At 60% compression;

initial pressure is 0.05MPa

Weight of sphere

±10%

Diameter

Length

Energy Absorption

(KJ)

Reaction Force

(KN)

KG

200

500




300

500




500

1000

6

64

25

600

1200

10

86

35

700

1500

17

137

50

1000

1500

32

181

80

1000

2000

45

257

100

1200

2000

63

297

120

1350

2500

100

426

170

1500

3000

153

579

320

1700

3000

190

637

400

2000

3500

308

875

590

2500

4000

663

1380

1000

2500

5500

932

2010

1400

3000

5000

1050

2030

1800

3000

6000

1315

2488

2200

3300

6500

1814

3015

2700

3500

6000

2018

3286

2800

3500

6500

2325

3656

3200

3500

7000

2650

4018

3600

3600

7200

3180

4821

4320

Notes:
1. Guaranteed energy absorption represents the guaranteed energy absorption at 60% deflection.
2. Tolerance of reaction fore and deflection are as follows: Reaction:10%, Deflection:5%.
3. Each reaction and energy absorption is measured under static conditions.
4. Testing pressure rate indicates the testing pressure at the factory.
5. Weight of fender body and net may vary 10%.
6. Special sizes are available upon request.
7. Different levels of performance according to internal air pressure levels specified this fenders.
