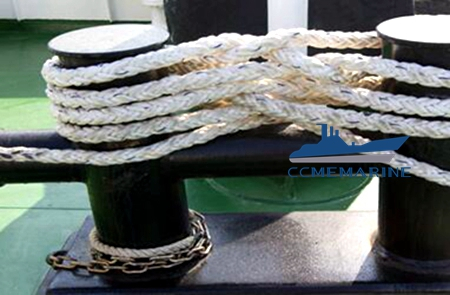

DIN Standard Marine Mooring Bollard Double Bollard Dock Bollard

Model Type: NS 2584 Double Bitt Bollards
Material: Casting Steel
Standards: NS 2584
Certificates: CCS,ABS,BV,LR,NK,RINA,etc.

Breaking Load:
Surface :
Certificate :
Quantity:
  • CCM2
  • CCME



 *Product Name: Marine Double Crossing Bollard

*Size: 50-300mm

*Material: Carbon Steel

*Technology: Welded

*Surface Treatment: Gray Zinc Rich Primer, as required

*Certificate: CCS ABS BV NK KR GL-DNV LR RINA RMRS

*Standard: GB/T554-1996  JISF2001 NS2584

*Packing: Steel Pallet, as required

*Usage: used for berthing and mooring of ships

 Nominal Dia.


Tightwire
  Dia.(Max)

Rope Girth
  (Max)

D

L

A

B

H

 Screw


  Weight
  kg


  Screw Thread
  Dia.

Qty.

50

8.7

75

50

310

180

130

190

M12

6

7

75

11.5

90

75

450

275

170

290

M16

6

16

100

13.5

100

100

550

350

200

350

M18

6

27

125

15.5

125

125

660

425

240

425

M22

6

49

150

17.5

150

150

770

500

270

500

M22

6

71

175

19.5

175

180

850

530

320

550

M24

6

103

200

22.5

200

203

960

600

360

795

-


181

250

26.0

225

245

1200

750

450

855

-


310

300

30.5

250

299

1440

900

540

1160

-


576
