•Custom roto-molded costs are significantly less than other custom plastic molding processes.
•The rotational molding process allows for quick turnaround from concept to production.
•Roto Molding does not force plastic into a shape. Forced air molding makes uneven, low-quality products. Rotomolded plastic products are even and durable.

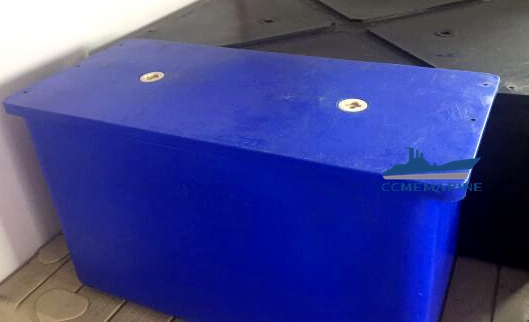

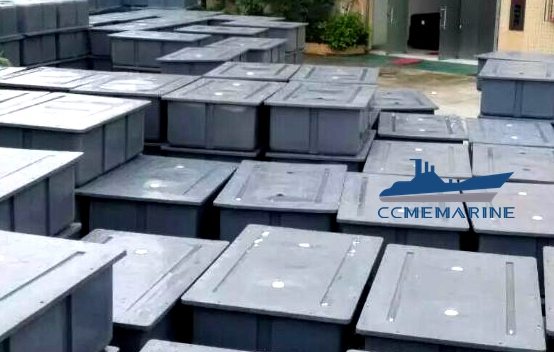

Rotomolded Plastic Floating Pontoon Marina Floating dock
1.mould ---aluminium casting mould by rotomouding
2.new design ----professional engineer and help you design your own mould and product base on your idea or simple sketch .
3.plastic product ---- PE,LDPE,HDPE,LMDPE, UV.8-20 resistant ,food grade material for plastic product .
Benefits of Plastic Rotomolding
•Custom roto-molded costs are significantly less than other custom plastic molding processes.
•The rotational molding process allows for quick turnaround from concept to production.
•Roto Molding does not force plastic into a shape. Forced air molding makes uneven, low-quality products. Rotomolded plastic products are even and durable.
Features
1.Plastic pontoon
2.Safe and durable
3.Maintenance free
4.Environmentally friendly
5.Easy installing and dismantling
Applications
floating bridge,ocean pontoon,floating pontoon,floating dock,pontoon,modular float system,pontoon system,marina,jet ski dock ,jetty ,pier,swimming pool,fish farm.
| No. | Dimension mm | Weight kg | Floating buoyancy Kg (100% Drown) | Thickness mm | Quantity for 40HQ container pc |
| 1 | 1200x800x550 | 30.5 | 490 | 5mm | 123 |
| 2 | 1200x800x650 | 35.8 | 580 | 5mm | 90 |
| 3 | 1200x800x800 | 42 | 720 | 5mm | 75 |
| 4 | 1420x900x550 | 40 | 660 | 5mm | 97 |
| 5 | 1650x920x650 | 47.5 | 830 | 5mm | 68 |
| 6 | 1650x960x650 | 48.5 | 870 | 5mm | 66 |
| 7 | 1700x1180x650 | 60 | 1140 | 5mm | 54 |
| 8 | 1200x800x1050 | 55 | 950 | 5mm | 60 |
1.It allows an inaccuracy of 5± % technical figure.
2.To open a new mold for customized size, extra cost is USD3000 per one mold. Mold-opening time is around 15 days
3.Color: usually it is black or blue color.
4.The E.P.S content in the pontoon has a 0.94lbs per cubic foot density.
