| Structure : | |
|---|---|
| Certificate : | |
| Working load : | |
| Normal Speed : | |
| Specification: | |
| Quantity: | |
CCM3
CCME

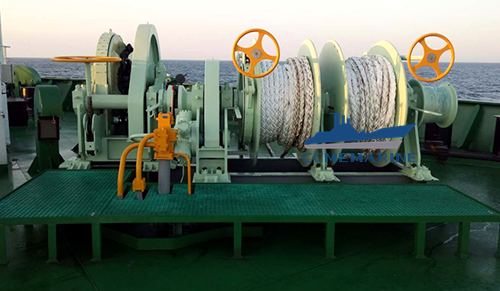

1. chain cable diameter: 19mm to 73mm.
2. nominal pull: 15.3KN to 226.5KN.
3. anchor depth: 82.5m
4. nominal drum load: 15KN to160KN.
5. the above technical parameters and dimension can be designed to suit your special requirements
Anchor winch (windlass)paramaters:
| Type(Dia of chain) | working load (KN) | Over load pulling force(kN) | Holding load(KN) | Nominal speed(m/min) | |||
| MM | U2 | U3 | U2 | U3 | U2 | U3 | 9 |
| 17.5 | 13.0 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 |
| 19 | 15.3 | 17.2 | 23.0 | 25.8 | 95 | 135 | 9 |
| 20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 9 |
| 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 |
| 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 |
| 26 | 28.7 | 32.11 | 43.1 | 48.2 | 175 | 250 | 9 |
| 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 |
| 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 |
| 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 |
| 34 | 49.1 | 54.9 | 73.7 | 82.4 | 294 | 421 | 9 |
| 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 |
| 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 |
| 40 | 68.0 | 76.0 | 102 | 114 | 402 | 576 | 9 |
| 42 | 75.0 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 |
| 44 | 82.3 | 92.0 | 123.5 | 138 | 483 | 691 | 9 |
| 46 | 89.9 | 100.5 | 134.9 | 150.8 | 256 | 753 | 9 |
| 48 | 97.9 | 109.44 | 146.9 | 164.1 | 570 | 816 | 9 |
| 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 |
| 52 | 114.9 | 128.4 | 172.4 | 192.6 | 664 | 950 | 9 |
| 54 | 123.9 | 138.5 | 185.9 | 207.8 | 713 | 1021 | 9 |
| 56 | 133.3 | 149 | 200 | 223.5 | 764 | 1093 | 9 |
| 58 | 143.0 | 159.8 | 214.5 | 239.7 | 816 | 1168 | 9 |
| 60 | 153.0 | 171.0 | 229.5 | 256.5 | 870 | 1245 | 9 |
| 62 | 163.4 | 182.6 | 245.1 | 273.9 | 925 | 1324 | 9 |
| 64 | 174.1 | 194.6 | 261.2 | 291.9 | 982 | 1405 | 9 |
| 66 | 185.1 | 206.9 | 277.7 | 310.4 | 1040 | 1488 | 9 |
| 68 | 196.5 | 219.6 | 294.8 | 329.4 | 9098 | 1573 | 9 |
| 70 | 208.3 | 232.8 | 312.5 | 349.4 | 1160 | 1660 | 9 |
| 73 | 226.5 | 253.1 | 339.8 | 379.7 | 1254 | 1794 | 9 |
| 76 | 245.5 | 274.4 | 368.3 | 411.6 | 1350 | 1932 | 9 |
| 78 | 258.6 | 289.0 | 387.9 | 433.5 | 1416 | 2026 | 9 |
1. chain cable diameter: 19mm to 73mm.
2. nominal pull: 15.3KN to 226.5KN.
3. anchor depth: 82.5m
4. nominal drum load: 15KN to160KN.
5. the above technical parameters and dimension can be designed to suit your special requirements
Anchor winch (windlass)paramaters:
| Type(Dia of chain) | working load (KN) | Over load pulling force(kN) | Holding load(KN) | Nominal speed(m/min) | |||
| MM | U2 | U3 | U2 | U3 | U2 | U3 | 9 |
| 17.5 | 13.0 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 |
| 19 | 15.3 | 17.2 | 23.0 | 25.8 | 95 | 135 | 9 |
| 20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 9 |
| 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 |
| 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 |
| 26 | 28.7 | 32.11 | 43.1 | 48.2 | 175 | 250 | 9 |
| 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 |
| 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 |
| 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 |
| 34 | 49.1 | 54.9 | 73.7 | 82.4 | 294 | 421 | 9 |
| 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 |
| 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 |
| 40 | 68.0 | 76.0 | 102 | 114 | 402 | 576 | 9 |
| 42 | 75.0 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 |
| 44 | 82.3 | 92.0 | 123.5 | 138 | 483 | 691 | 9 |
| 46 | 89.9 | 100.5 | 134.9 | 150.8 | 256 | 753 | 9 |
| 48 | 97.9 | 109.44 | 146.9 | 164.1 | 570 | 816 | 9 |
| 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 |
| 52 | 114.9 | 128.4 | 172.4 | 192.6 | 664 | 950 | 9 |
| 54 | 123.9 | 138.5 | 185.9 | 207.8 | 713 | 1021 | 9 |
| 56 | 133.3 | 149 | 200 | 223.5 | 764 | 1093 | 9 |
| 58 | 143.0 | 159.8 | 214.5 | 239.7 | 816 | 1168 | 9 |
| 60 | 153.0 | 171.0 | 229.5 | 256.5 | 870 | 1245 | 9 |
| 62 | 163.4 | 182.6 | 245.1 | 273.9 | 925 | 1324 | 9 |
| 64 | 174.1 | 194.6 | 261.2 | 291.9 | 982 | 1405 | 9 |
| 66 | 185.1 | 206.9 | 277.7 | 310.4 | 1040 | 1488 | 9 |
| 68 | 196.5 | 219.6 | 294.8 | 329.4 | 9098 | 1573 | 9 |
| 70 | 208.3 | 232.8 | 312.5 | 349.4 | 1160 | 1660 | 9 |
| 73 | 226.5 | 253.1 | 339.8 | 379.7 | 1254 | 1794 | 9 |
| 76 | 245.5 | 274.4 | 368.3 | 411.6 | 1350 | 1932 | 9 |
| 78 | 258.6 | 289.0 | 387.9 | 433.5 | 1416 | 2026 | 9 |
