| Application : | |
|---|---|
| Material: | |
| Cord Fabric: | |
| Quantity: | |
CCM5
CCME

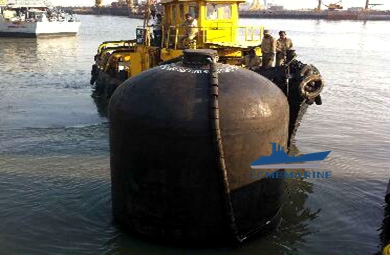

All Hydro pneumatic fender can be engineered to meet specific application requirments, reactions force and energy absorption information can be provided on requirments.
AllfendersmadeaccordingtoISO17357
Easytoinstall
lowmaintenance
canbeusedinplaceofdeepwatercatamarans/camels
canserveastemporaryfacilitieswherepermanentstructuresareinuse
The fenders can easily be deflated which allows simple and cost efficient relocation and re-commissioning in other locations.
Performance
Specifications (mm) | At 60% compression; initial pressure is 0.05MPa | Weight of sphere ±10% | ||
Diameter | Length | Energy Absorption (KJ) | Reaction Force (KN) | KG |
200 | 500 | |||
300 | 500 | |||
500 | 1000 | 6 | 64 | 25 |
600 | 1200 | 10 | 86 | 35 |
700 | 1500 | 17 | 137 | 50 |
1000 | 1500 | 32 | 181 | 80 |
1000 | 2000 | 45 | 257 | 100 |
1200 | 2000 | 63 | 297 | 120 |
1350 | 2500 | 100 | 426 | 170 |
1500 | 3000 | 153 | 579 | 320 |
1700 | 3000 | 190 | 637 | 400 |
2000 | 3500 | 308 | 875 | 590 |
2500 | 4000 | 663 | 1380 | 1000 |
2500 | 5500 | 932 | 2010 | 1400 |
3000 | 5000 | 1050 | 2030 | 1800 |
3000 | 6000 | 1315 | 2488 | 2200 |
3300 | 6500 | 1814 | 3015 | 2700 |
3500 | 6000 | 2018 | 3286 | 2800 |
3500 | 6500 | 2325 | 3656 | 3200 |
3500 | 7000 | 2650 | 4018 | 3600 |
3600 | 7200 | 3180 | 4821 | 4320 |
