Max working torque: 8KN. M - 500 KN. M
Max. Mech. Rudder angle: ± 45 degree
Time of rudder movement: ≤ 28 S
Rudder stock Diameter: 300mm - 900 mm
Working pressure: 13 Mpa - 20 Mpa
Design pressure: 16 Mpa - 24 Mpa
Max working torque: | |
---|---|
Quantity: | |
ALL STEERING GEAR CAN BE CUSTOMIZED ACCORDING TO YOUR REQUIREMNTS.
Before quotation pls advise the following specifications:

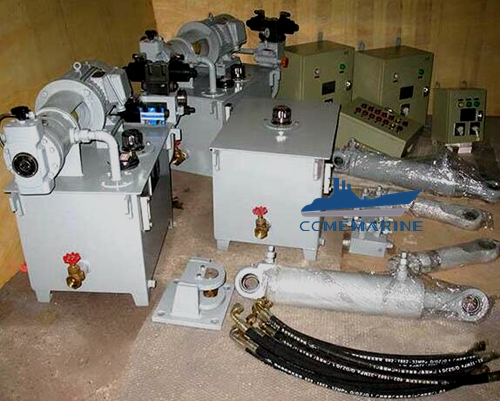

A. One set of rudder mechanism, two oil pump units, one reserve tank
1. Type: Swing type/ fork type/ rotary van type
2. Nos. Of rudders
3. Torque
4. Max. Turning angle
5. Turning time
B. Emergency steering gear
C. Manual pilot/ auto pilot/ follow-up pilot
SWING/CYLINDER type Marine Electro Hydraulic steering gear |
FORK type Marine Electro Hydraulic steering gear |
ROTARY VANE type Marine Electro Hydraulic steering gear |
