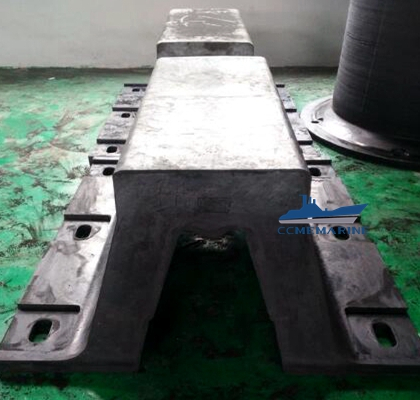

Marine Arch Type Rubber Fender

Arch fenders were introduced to improve upon the performance of Cylindrical fenders. Arch fenders have a better Energy / Reaction force ratio and recommended for all types of applications. The shape of these fenders helps to dissipate the stresses evenly. These extruded fenders are very easy to install and are maintenance free. Generally preferred for small to medium range vessels.
Features:
1.High energy absorption performance and low reaction force
2. High strength construction parts, long service life.
3. Easy for replacement for installation;

Material:	Rubber
Warranty:	3 Years
Availability:

Quantity:


Inquire Add to Basket

Model:
CCM6
Brand:
CCME

Product Description

With high energy absorption, low reaction force;

Reasonable structure, with long life span;

Easy to installation;

Can be fitted with frontal panels, protect fenders;

Large range of standard sizes, meet various design conditions;

Types	Specification(mm)
Types	H	L	L1	C	Q	n	B	B1	B2	B3	h	a	b	e	f
SA-001	150	1000	1075	110	855	1	98	240	300	96	25	50	95	25	55
SA-002	150	2000	2075	108	620	3	98	240	300	96	25	50	95	25	55
SA-003	150	3000	3075	108	715	4	98	240	300	96	25	50	95	25	55
SA-004	200	1000	1100	120	860	1	135	320	400	128	30	58	105	29	75
SA-005	200	2000	2100	120	620	3	135	320	400	128	30	58	105	29	75
SA-006	200	3000	3100	120	715	4	135	320	400	128	30	58	105	29	75
SA-007	250	1000	1125	130	865	1	164	410	500	160	33	64	125	32	90
SA-008	250	2000	2125	133	620	3	164	410	500	160	33	64	125	32	90
SA-009	250	3000	3125	133	715	4	164	410	500	160	33	64	125	32	90
SA-010	300	1000	1150	140	870	1	225	490	600	195	33	70	140	35	105
SA-011	300	2000	2150	138	625	3	225	490	600	195	33	70	140	35	105
SA-012	300	3000	3150	145	715	4	225	490	600	195	33	70	140	35	105
SA-013	400	1000	1200	150	900	1	300	670	800	260	40	82	165	41	120
SA-014	400	2000	2200	148	635	3	300	670	800	260	40	82	165	41	120
SA-015	400	3000	3200	150	725	4	300	670	800	260	40	82	165	41	120
SA-016	500	1000	1250	160	930	1	375	840	1000	325	45	94	180	47	140
SA-017	500	2000	2250	158	645	3	375	840	1000	325	45	94	180	47	140
SA-018	500	3000	3250	156	730	4	375	840	1000	325	45	94	180	47	140
SA-019	600	1000	1300	170	960	1	450	1010	1200	390	54	100	195	50	160
SA-020	600	2000	2300	168	655	3	450	1010	1200	390	54	100	195	50	160
SA-021	600	3000	3300	170	740	4	450	1010	1200	390	54	100	195	50	160
SA-022	800	1000	1400	180	###	1	600	1340	1600	520	72	136	270	68	260
SA-023	800	2000	2400	180	680	3	600	1340	1600	520	72	136	270	68	260
SA-024	800	3000	3400	180	760	4	600	1340	1600	520	72	136	270	68	260
SA-025	1000	1500	2000	200	800	2	750	1680	2000	650	90	136	290	68	300

Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
