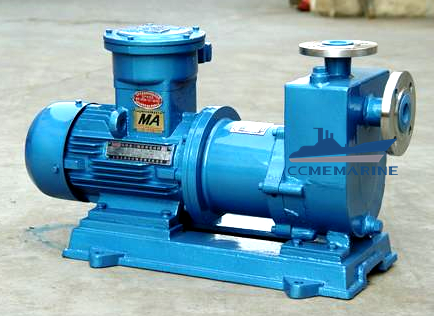

CWZ Horizontal Self-priming Centrifugal Pump
Product Feature
CWZ Series marine Horizontal self-priming centrifugal pump has the advantages of compact structure, beautiful appearance, good self-priming performance. According to different media, using different materials, applicable to transport ship bilge and ballast water or for cooling sea water, fire, sanitation, transportation temperature is not higher than 85 ℃seawater or freshwater.
Performance Parameter
| CWZ | 50HZ | 60HZ | ||||
| Type | Capacity | Head | Power/Motor | Capacity | Head | Power/Motor |
| (m3/h) | (m) | (kW) | (m3/h) | (m) | (kW) | |
| 32CWZ-5 | 8 | 21 | 1.5/Y90S-2H | 9.6 | 30.2 | 3/Y100L-2H |
| 32CWZ-4 | 8 | 30 | 2.2/Y90L-2H | 9.6 | 43.2 | 4/Y112M-2H |
| 32CWZ-3 | 8 | 42 | 4/Y112M-2H | 9.6 | 60.5 | 5.5/Y132S1-2H |
| 40CWZ-6 | 12 | 21 | 2.2/Y90L-2H | 14.4 | 30.2 | 3/Y100L-2H |
| 50CWZ-8 | 21 | 21 | 3/Y100L-2H | 25.2 | 30.2 | 5.5/Y132S1-2H |
| 50CWZ-6 | 21 | 30 | 4/Y112M-2H | 25.2 | 43.2 | 7.5/Y132S2-2H |
| 65CWZ-6 | 36 | 42 | 11/Y160M1-2H | 43.2 | 60.5 | 15/Y160M2-2H |
| 65CWZ-5 | 36 | 60 | 15/Y160M2-2H | 43.2 | 86.4 | 22/Y180M-2H |
| 80CWZ-8 | 60 | 42 | 15/Y160M2-2H | 72 | 60.5 | 30/Y200L1-2H |
| 80CWZ-6 | 60 | 60 | 22/Y180M-2H | 72 | 86.4 | 37/Y200L2-2H |
| 80CWZ-5.5 | 60 | 75 | 30/Y200L1-2H | 72 | 108 | 45/Y225M-2H |
| 100CWZ-14 | 100 | 30 | 15/Y160M2-2H | 120 | 43.2 | 30/Y200L1-2H |
| 100CWZ-11 | 100 | 42 | 22/Y180M-2H | 120 | 60.5 | 37/Y200L2-2H |
| 100CWZ-6 | 100 | 85 | 45/Y225M-2H | 120 | 122.4 | 75/Y280S-2H |
| 80CWZ-4 | 25 | 25 | 5.5/Y132S-4H | 30 | 36 | 7.5/Y132M-4H |
| 125CWZ-16.5 | 160 | 32 | 30/Y200L-4H | 192 | 46 | 45/Y225M-4H |
| 150CWZ-13 | 200 | 20 | 22/Y180L-4H | 240 | 28.5 | 37/Y225S-4H |
| 150CWZ-9 | 200 | 32 | 37/Y225S-4H | 240 | 43.8 | 55/Y250M-4H |
| 150CWZ-7 | 200 | 45 | 45/Y225M-4H | 240 | 65 | 75/Y280S-4H |
| 200CWZ-15 | 250 | 14 | 18.5/Y180M-4H | 300 | 20 | 30/Y200L-4H |
| 200CWZ-9 | 300 | 45 | 75/Y280S-4H | 360 | 65 | 110/Y280M-4H |
