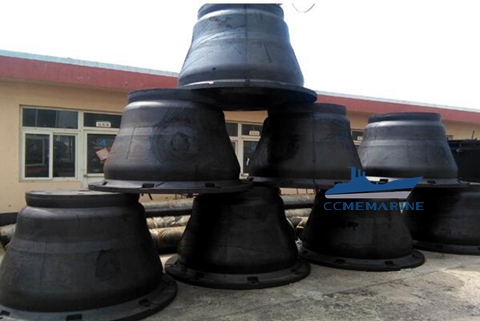

Marine Cone Type Rubber Fender

1 Cone type rubber fender is the 3rd generation of cell type rubber fender,the structure more reasonable,deflection can reach 70%,the equal specification fender energy absorb raise one more times, long life using.It can reduce the cost of the dock project.
2 While vessel angular berthing, the performance basically unchanged.
3 Front panel set in the margin of fender, it can lower the surface pressure of the vessel side board, the surface pressure can be controlled at below 200KN/M .



2. Easily for installation.
3. Applicable for frame dock and ships due to the smaller bottom width.
2. High effectiveness and economical
3. Good shear force resistance

diameter :
Effective length :
Function:
Quantity:
  • CCM5
  • CCME

(1)Cylindrical Fender
(2)Super Arch Marine Rubber Fender
(3)Super Cell Marine Rubber Fender
(4)Cone Fender
(5)Pneumatic Rubber Fender (Inflatable Rubber Fender/Float Rubber Fender)
(6)Foam Elastomer Fender
(7)D Type Rubber Fender
(8)GD type fender
(9)I fender
(10)U fender
(11)Turn cell fender(roller fender)
(12)Rubber ladder


Specifications:

TypesHhDia.1Dia.2Dia.3Dia. 4nD1Mdabs
Cone 50050025425325675750430M24475~9536
Cone 60060027510390810900630M24590~11040
Cone 700700325954559451050638M306105~12540
Cone 8008003668052010801200644M367120~14052
Cone 9009004176558512151350644M368135~15555
Cone 100010004585065013501500656M428150~17065
Cone 110011005093571514851650650M428165~18565
Cone 115011505299875015501725656M4210170~19570
Cone 1200120054102078016201800850M4210180~21075
Cone 1300130059110584517551950860M4811195~22575
Cone 1400140066119093018902100860M4812210~23570~80
Cone 16001600721360106021602400870M4814280~27070~80
Cone 180018007815301190243027001076M5616270~29075~90
