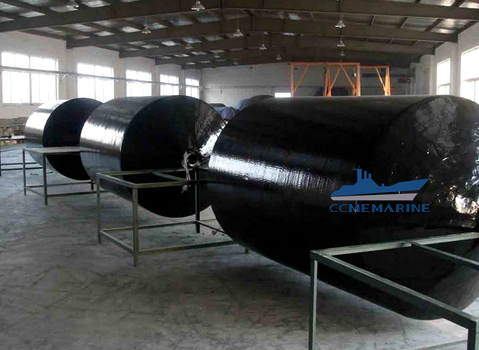

1.Polyurethane foam fender is a kind of constructive fender with polyurethane materials as its outer protective layer and polyethylene or plastic foam core forming the resilient inner part.
2. Foam-filled fender (ball) is used to provide buffer and protection to the ships and widely used in ships, ocean platform, offshore facilities, wharf and yachts etc. As buffer of STS or STD berthing, the foam filled fender could absorb impact energy of ships and reduce reactive force and greatly improve safety of berthing.
Sizes
specification | D | L | 60%compression |
(Kg) Weight reference | |
(KN) Reaction force | (KN-M) Energy absorb | ||||
φ300×500 | 300 | 500 | 13 | 0.49 | 11 |
φ400×600 | 400 | 600 | 18 | 1.05 | 19 |
φ500×1000 | 500 | 1000 | 38 | 2.18 | 42 |
φ600×1000 | 600 | 1000 | 49 | 3.4 | 63 |
φ1000×1000 | 1000 | 1000 | 137 | 33 | 275 |
φ1000×1500 | 1000 | 1500 | 206 | 49 | 410 |
φ1000×2000 | 1000 | 2000 | 273 | 65 | 553 |
φ1200×1500 | 1200 | 1500 | 256 | 70 | 615 |
φ1200×2000 | 1200 | 2000 | 336 | 93 | 815 |
φ1500×2500 | 1500 | 2500 | 520 | 180 | 1550 |
φ1500×3000 | 1500 | 3000 | 626 | 217 | 1863 |
φ1600×3000 | 1600 | 3000 | 860 | 270 | 2110 |
φ2000×3500 | 2000 | 3500 | 992 | 458 | 3850 |
φ2000×4000 | 2000 | 4000 | 1120 | 506 | 4590 |
φ2200×4500 | 2200 | 4500 | 1402 | 682 | 6000 |
φ2500×4000 | 2500 | 4000 | 1415 | 778 | 6860 |
φ2500×5000 | 2500 | 5000 | 1735 | 992 | 8555 |
φ3000×5000 | 3000 | 5000 | 2060 | 1422 | 12850 |
φ3000×6000 | 3000 | 6000 | 2470 | 1702 | 15400 |
φ3300×6500 | 3300 | 6500 | 2956 | 2248 | 16690 |
φ4300×8500 | 4300 | 8500 | 19012 | 7398 | 32000 |
φ4500×9000 | 4500 | 9000 | 21520 | 6732 | 38000 |
Note
(1)Tolerance:±10%
(2)Other specification fender can be manufactured upon users’ request.
(3)Large model TLT-P floating fender need to be add socket and suspending chain.
(4)It can adopt polyurethane, rubber, special plastic etc material, and also can adjust resilience modulus, to meet the requirement of different design.
Can be supplied customized size upon customers' request.
