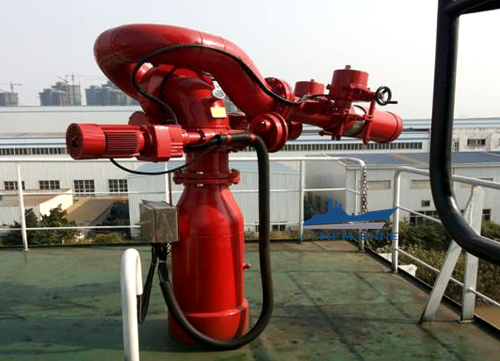

Marine Electric Fire Water Monitor for Fire Fighting System

Fire monitor is a kind of effective equipment for extinguishing great fire. They can be operated by manual,or electric motor. The fire monitor is composed of monitor body, spray assembly, operator and accessories. Monitor body can rotate in horizontal and vertical. The body can be fixed or portable, and can be operated by lever, hand wheel, electric unit or hydraulic unit. The spray assembly, such as nozzle or foam tube is an important part of monitor. The nozzle is used for spraying water, and AFFF solution. The foam tube is used for spraying protein foam solution. The operator such as hand wheel, electric unit, and hydraulic motor, is chosen by owner.

Rated Flow(L/s):
Fire Fighting Medium:
Quantity:
  • CCM9
  • CCME

Features
*large capacity,
*long throw range,
*high reliability
*convenient operation.
Specification

Muanual Fire Monitor
Rated Flow(L/s):  50-250
Fire Fighting Medium: Foam/water/ foam and water
Operation Style: hand level / hand round
The Max Pressure:16bar
Rotation Range: Horizontal:360° infinite
Vertical:+85°~-75°
Capacity:  2000L/min-32000L/min
Inlet: DN50 PN16 / DN65 PN16/ DN80 PN16/ DN100 PN16/ DN150 PN16/ DN200 PN16/ DN250 PN16
Outlet: Screw Thread/Square flange/ Flange connection
Materials:Body: Stainless steel/Anti-corrosion aluminum alloy/Copper alloy
Sealing: NBR
Pipe:Hard aluminum alloy
Flange: Stainless steel/Anti-corrosion aluminum alloy/Copper alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
