Model Type:Type A
Material:Casting Steel and Casting Iron
Certificates: CCS, ABS, BV, DNV·GL, LR, RS, KR, etc.
The panama chock shall be classified by its site as follows:

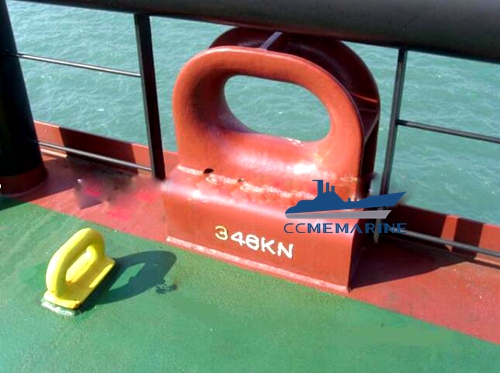

- Type A-Deck Mounted Panama Chock
-Type B-Bulwark Mounted Panama Chock
Nominal sizes of panama chocks are denoted by reference to the width of the opening ,in millimeters.The nominal sizes are 310 and 360.
The Panama chocks were designed in accordance with the technical requirements of Panama Canal as listed below:
-Bearing surface radius:not less than 180mm.
-Single chock:opening area:min.650cm2,305x230mm,45,36t SWL.
Double chock:opening area:min.900cm2,355x255mm,64,00t SWL.
The strength of the Panama chocks was evaluated by finite element model analysis and determined based on the design criteria.
