| Anchor Chain Dia: | |
|---|---|
| Weight (Kg): | |
| Certificate : | |
| Quantity: | |
CCM5
CCME

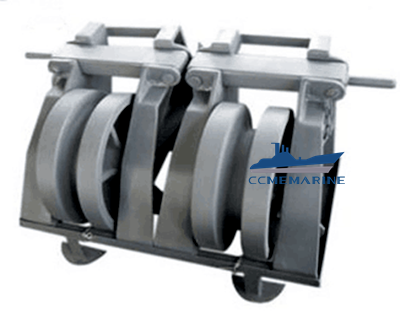

JIS F2033 Roller Chain Stopper:
Chain stopper is disposed between the connecting tube and anchor windlass, anchor for fixing to prevent the chain from slipping out. When at anchor, anchor chain stopper and pull the chain is transmitted to the hull, to reduce the load on the windlass to protect the windlass. Withstand the force of gravity and inertia anchor sailing
The role of chain stopper :
Anchor devices abandon the role of the chain:
A. make the end of the anchor fixed B.make chain not in chaos C.quickly disengagement chain and facilitate in case of emergency D.easy maintain anchor chain overhaul
Model: roller bar type chain stopper, cast steel bar chain stopper and cast lever chain stopper

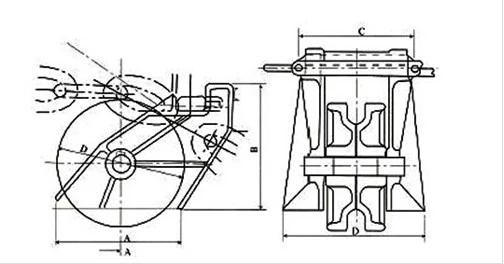

| Number | 73 | 78 | 84 | 90 | 95 | 102 | 107 | 114 | 122 | 132 |
| Diameter of Apply Anchor Chain | 70~73 | 76~78 | 81~84 | 87~90 | 92~95 | 97~102 | 105~107 | 111~114 | 117~122 | 127~132 |
| A | 730 | 780 | 840 | 900 | 950 | 1020 | 1070 | 1140 | 1220 | 1320 |
| B | 715 | 760 | 820 | 890 | 945 | 1005 | 1070 | 1140 | 1220 | 1315 |
| C | 700 | 730 | 780 | 840 | 880 | 940 | 990 | 1040 | 1140 | 1170 |
| D | 730 | 780 | 840 | 900 | 950 | 1020 | 1070 | 1140 | 1220 | 1320 |
| Weight(kg) | 1000 | 1180 | 1470 | 1780 | 2110 | 2380 | 2900 | 3440 | 4100 | 5080 |
