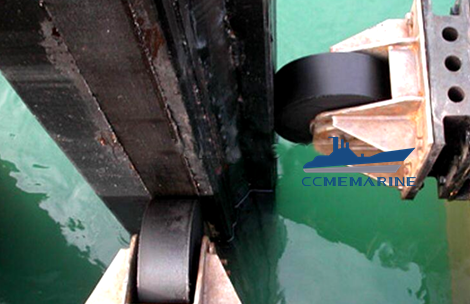

Roller Fenders are usually installed to guide ships in restricted spaces like walls of dry docks. They can also be used on corners and lock entrances where lower energies are needed. Roller Fenders use stainless steel and composite bearings which give a very low rolling resistance and require virtually zero maintenance.
Feature:
1 Roller fender can roll with fender remove, and generate a certain deformation.
2 Roller fender mainly used in dock, water lock, different limitation water Chanel, and dock, Sticking out corner etc.
3 High energy absorption .
4 low reaction force .
Measures:
A | B | C | D | E | F | G | weight | |
model | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Turn cells | (kg) |
D1-060-20 | 600 | 200 | 320 | 110 | 420 | 695 | 1 | 120 |
D1-075-25 | 750 | 250 | 400 | 140 | 510 | 870 | 1 | 230 |
D1-090-30 | 900 | 300 | 480 | 165 | 610 | 1040 | 1 | 410 |
D1-120-40 | 1200 | 400 | 640 | 220 | 820 | 1380 | 1 | 980 |
D1-150-50 | 1500 | 500 | 800 | 275 | 1010 | 1740 | 1 | 1810 |
D1-180-60 | 1800 | 600 | 960 | 330 | 1210 | 2080 | 1 | 3130 |
D1-210-70 | 2100 | 700 | 1155 | 385 | 1410 | 2440 | 1 | 4800 |
D1-240-80 | 2400 | 800 | 1280 | 440 | 1610 | 2770 | 1 | 6040 |
D2-060-20 | 600 | 200 | 320 | 110 | 770 | 695 | 2 | 210 |
D2-075-25 | 750 | 250 | 400 | 140 | 935 | 870 | 2 | 420 |
D2-090-30 | 900 | 300 | 480 | 165 | 1120 | 1040 | 2 | 775 |
D2-120-40 | 1200 | 400 | 640 | 220 | 1500 | 1380 | 2 | 1770 |
D2-150-50 | 1500 | 500 | 800 | 275 | 1850 | 1740 | 2 | 3330 |
D2-180-60 | 1800 | 600 | 960 | 330 | 2215 | 2080 | 2 | 5720 |
D2-210-70 | 2100 | 700 | 1155 | 385 | 2590 | 2440 | 2 | 9750 |
D2-240-80 | 2400 | 800 | 1280 | 440 | 2950 | 2770 | 2 | 12400 |
D3-060-20 | 600 | 200 | 320 | 110 | 1120 | 695 | 3 | 310 |
D3-075-25 | 750 | 250 | 400 | 140 | 1360 | 870 | 3 | 610 |
D3-090-30 | 900 | 300 | 480 | 165 | 1630 | 1040 | 3 | 1080 |
D3-120-40 | 1200 | 400 | 640 | 220 | 2180 | 1380 | 3 | 2550 |
D3-150-50 | 1500 | 500 | 800 | 275 | 2690 | 1740 | 3 | 4850 |
D3-180-60 | 1800 | 600 | 960 | 330 | 3220 | 2080 | 3 | 8400 |
D3-210-70 | 2100 | 700 | 1155 | 385 | 3770 | 2440 | 3 | 13670 |
D3-240-80 | 2400 | 800 | 1280 | 440 | 4290 | 2770 | 3 | 18390 |
