Marine Rubber Fenders Ship Square Type Fender

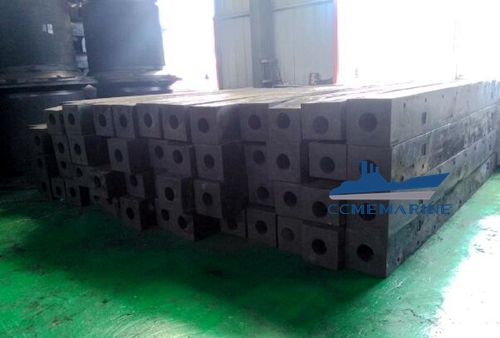

Square Type Rubber Fender
1,Material:NR,EPDM
2,Used for docks,vessel,tugboats etc.
3,Convenient in installing
3 Front panel set in the margin of fender, it can lower the surface pressure of the vessel side board, the surface pressure can be controlled at below 200KN/M .



2. Easily for installation.
3. Applicable for frame dock and ships due to the smaller bottom width.
2. High effectiveness and economical
3. Good shear force resistance

Material:
Type :
Function:
Quantity:
  • CCM7
  • CCME

1. Square type marine rubber fender are supplied in DD,DO, and solid shapes. These Long length fenders can be supplied to all kinds of docks, quays, and ships.

2. High energy absorption capacity, thus minimizing the face contact.

3. Easily be installed by means of anchor bolts.

Feature:

1. Material: Natural Rubber

2. High energy absorption and Reasonable reaction force.

3. Specifications are avaliable upon request

4. The fender is applicable for all kinds of docks,quays,and ships.

5. Good performance during angular berating.


Technical Parameter


Type

B x Φ

Specification (mm)

B

Φ

L

150 x 75

150

75

500 ~ 3000

200 x 100

200

100

250 x 125

250

125

300 x 150

300

150

400 x 200

400

200

500 x 250

500

250
