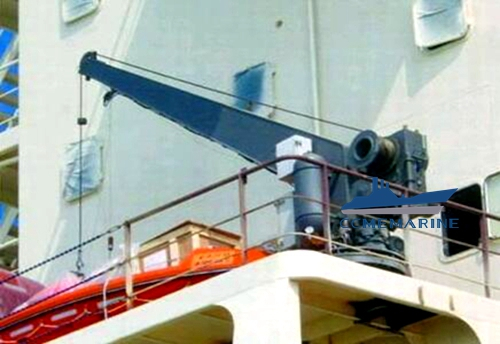

Marine Stiff Boom Vessel Crane Used at Vessel Deck Barge Crane

Stiff boom is designed for general cargo handling and service onboard ships and offshore units. The cranes are available in various range and can be supplied according to customer requirements. The stiff boom cranes can be delivered within a broad range of certifications and numerous optional features. Stiff boom cranes, the boom type is fixed, are typically used in dock, on fixed installations and in harbor conditions with its stability.

Type :
Quantity:
  • CCM2
  • CCME

 FEATURES

 In certain situations a stiff boom crane even has a superior ability to reach over obstructions such as fences or walls where other cranes may fail.

 Not only are the important moving parts of the stiff boom protected inside the machinery, they are also less strained when lifting a load, as energy goes to its winch first, then to the lift cylinder, and then the actual crane structure.

 Example model

SWL                    6T@10M
MAX WORKING RADIUS   10m
MIN WORKING RADIUS   3m
HOISTING SPEED        0~10m/min
HOISTING HEIGHT        20m
SLEWING SPEED      ~0.8r/min
SLEWING ANGLE          360°
LUFFING TIME         ~ 45s
EXTENSION TIME       ~150s
WORKING CONDITIONTRIM                   ≤2°
HEEL                   ≤5°
ELEC-MOTOR POWER     Y160K-4-H
POWER                  15kw
Speed               1460r/min
POWER RESOURCE        AC415V/50HZ
PROTECT CLASS         IP56
INSUKATE CLASS          F
WORKING TYPE            S1
