CCM4
CCME

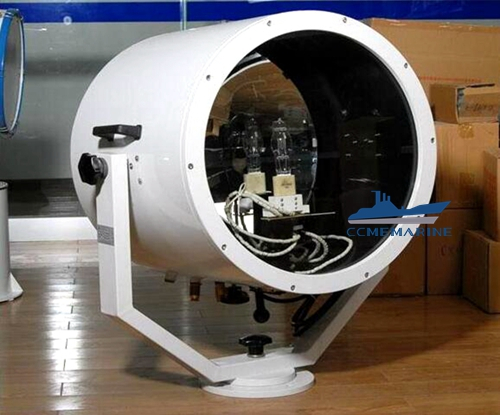

Features
1. Easy to install and replace the bulbs.
2. High lighting intensity and long illuminate distance.
3. The body of light is made of steel and stainless steel two type of material which surface be coated by ship special use powder with the feature of excellent corrosion and shock resistance.
4. High-pure reflector with imported light sources and can be used in temperature -20°above.
5. Matched joystick which can control to rotate the body of light 350 degree in horizontal and 30 degree in pitch by hand in cabin of ship.
6. The cable outside diameter is 10~14mm.
Standard and certification:
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to gb7000.7 OF SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 OF GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRIC PRODUCTS.
4. Approved by China Classification Society(CCS)
Parameters
Type | Power (W) | Voltage (V) | Material | Weight (KG) | Lamp holder | Illuminant | Luminous flux | Protection class |
TG26 | 300/500 | 220V/50Hz 220V/60Hz | Aluminum alloy | 23.6 | GX9.5 | Tungsten halogen lamp | 6900/12500 | IP56 |
TG27 | 1000 | 23000 |
Features
1. Easy to install and replace the bulbs.
2. High lighting intensity and long illuminate distance.
3. The body of light is made of steel and stainless steel two type of material which surface be coated by ship special use powder with the feature of excellent corrosion and shock resistance.
4. High-pure reflector with imported light sources and can be used in temperature -20°above.
5. Matched joystick which can control to rotate the body of light 350 degree in horizontal and 30 degree in pitch by hand in cabin of ship.
6. The cable outside diameter is 10~14mm.
Standard and certification:
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to gb7000.7 OF SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 OF GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRIC PRODUCTS.
4. Approved by China Classification Society(CCS)
Parameters
Type | Power (W) | Voltage (V) | Material | Weight (KG) | Lamp holder | Illuminant | Luminous flux | Protection class |
TG26 | 300/500 | 220V/50Hz 220V/60Hz | Aluminum alloy | 23.6 | GX9.5 | Tungsten halogen lamp | 6900/12500 | IP56 |
TG27 | 1000 | 23000 |
